Product Informations



Wide 400-mm horizontal type. Safety is ensured through detection of microdischarge and overcurrent. Equipped with HDC-AC for stable static elimination performance over the long term.

About Icons

Product features

Wide blow Air Ionizer WINSTAT BF-X4MB is slim and light-weight designed desktop ionizer with featuring SSD high technology HDC-AC that has long term and stable static elimination capabilities.

  • Wide Coverage area as 400mm.
  • With SSD high technology HDC-AC(Hybrid Digital controlled AC), it performs as less particle attach and long term stability performance.
  • Easy maintenance with detachable louver and Emitter needle unit.
  • Safety operation with minute discharge detection and over current detection.
  • Angle locked function keeps fixed angle direction.
  • Safety lock function with the front louver take off.
detachable louver and Emitter needle unit


BF-X4MB Optional Parts

(Left) :Emitter needle unit(DNU-W85)
(Right):Filter for replacement(10 sheets package)(OBF-F2ZA-1-10)

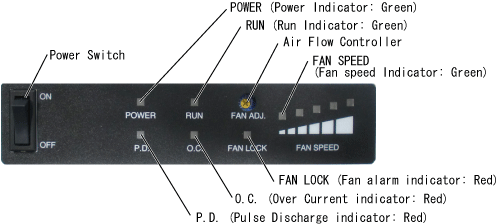

Indicator Panel

BF-X4MB Indicator Panel

louver panel static elimination features and static elimination area

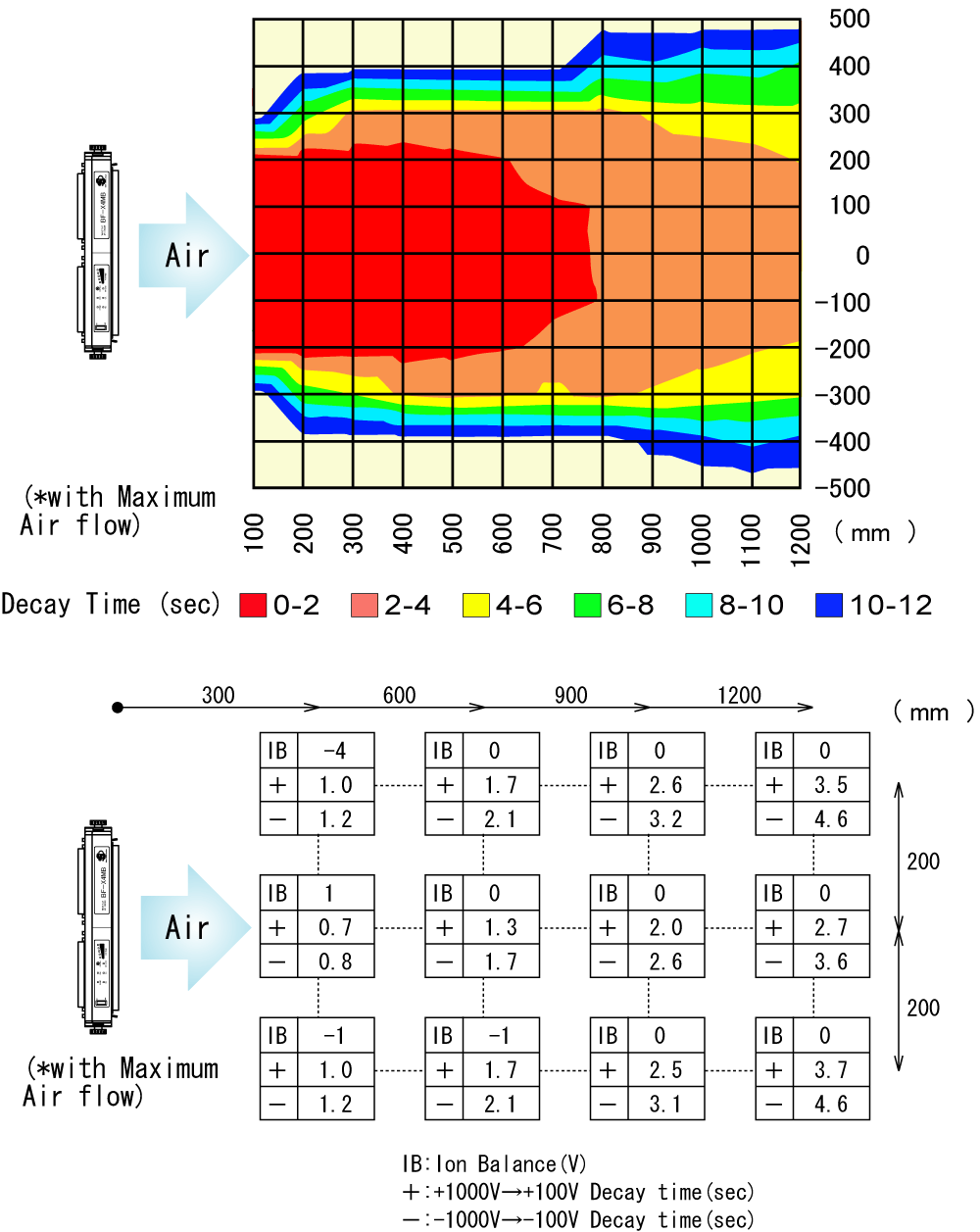

BF-X4MB Static Elimination Area

* Test by CPM with 150x150mm plate (20pF)
* Above data is actual data not for guaranteed.


Model BF-X4MB
Input power supply 24 VDC (AC adapter AC 100 to 240V )
Electric consumption 25 VA (Maximum Air flow)
Output voltage ±7,500 V0-p
Ion balance Within ±5V(at 300 mm distance ; when shipped from the factory)
Airflow 1.4 to 3.2 m3 / min
Air speed 0.7 to 1.8 m / sec (distance 300 mm; centered)
Ozone density Under 0.006 ppm at distance 150 mm front
Operating Environment 0 to 40℃ / 15 to 85% RH (no condensation)
Filter Class as pre-filter level
Signal output MOS FET Relay Non-voltage contact (NC output) HV alarm or fan alarm: OFF
Main unit dimensions 370×159×78.5 mm (W×H×D) not including projecting portion
Weight Approx. 1.700 g (with stand flame)
Noise Level 62 dB(A) (distance 1 m)
Accompanying items Handling Manual, AC adapter, signal cable, cleaning brush, 2P-3P plug adapter
Optional parts Discharge Emitter unit:DNU-W85
Filters :OBF-F2ZA-1-10(package of 10)
