BF-X2ME
WINSTAT Series
Ion balance reduced to ± 3 V or less！
Thin, lightweight, and equipped with HDC-AC. Exhibits stable static elimination performance over the long term, with little variation over time.
- Purpose：
- Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesPrinting, coating processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort range
- Function：
-
Product features
Compact Air Ionizer WINSTAT BF-X2ME is slim and light-weight designed desktop ionizer with featuring SSD high technology HDCAC that has long term and stable static elimination capabilities.
(Left) ：Straight Louver
(Right)：Wide angle Louver
Options
(Left) ：Emitter needle unit(DNU-W85)
(Right)：Filter for replacement(10 sheets package)(OBF-F2MA-1-10)

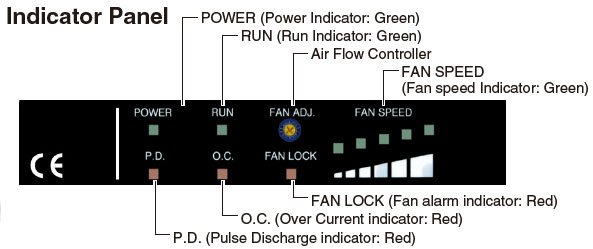

Indicator Panel

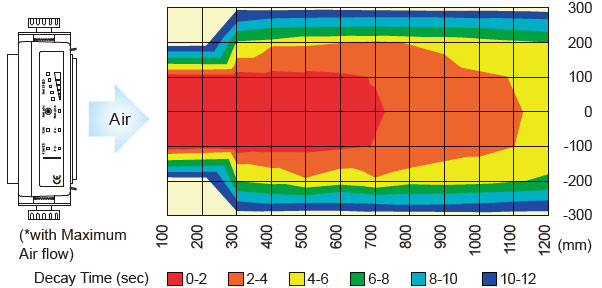

louver panel static elimination features and static elimination area
＊ Test by CPM with 150x150mm plate (20pF)
＊ Above data is actual data not for guaranteed.
Specification
| Model | BF-X2ME |
|---|---|
| Input Power | DC24V (AC adaptor AC100~240V available) |
| Capacity | 12VA |
| Output Voltage | ±7,500Vo-p |
| Ion Balance | Below ±5V (Distance at 300mm) |
| Air Volume | 1.4 to 3.5m3 / min |
| Air Speed | 1.5 to 2.9m / sec (with Straight Louver at 300mm) 0.1 to 0.3m / sec (with wide angle louver at 300mm) |
| Ozone density | Below 0.004ppm (Distance at 150mm) |
| Available environment | 0 to 40℃ / 15 to 85% RH (without condensation) |
| Filter | Pre-filter level |
| Signal Output | MOS FET Relay Non-voltage contact (NC output) HV alarm or fan alarm: OFF |
| Dimensions | 150×182×66mm (W×H×D) |
| Weight | Approx 1,000g (with Bracket) |
| Sound level | 59dB(A) (at 1m distance) |
| Accessories | Manual, AC Adaptor, Wide angle louver, Signal output cable, Cleaning Brush |
| Optional parts | Emitter Needle unit(DNU-W85) Filter(10pcs)(OBF-F2MA-1-10) |
