A wide, thin, and lightweight type. Safety is ensured through detection of microdischarge and overcurrent. Equipped with HDC-AC for stable static elimination performance over the long term.

About Icons

Product features

Wide blow Air Ionizer WINSTAT BF-6MB is slim designed desktop ionizer with featuring SSD high technology HDC-AC that has long term and stable static elimination capabilities.

  • Wide Coverage area as 600mm.
  • With three big strong 120mm sized fan cover the wide and long distance area.
  • Easy maintenance with detachable louver and Emitter needle unit.
  • Safety operation with minute discharge detection and over current detection.
  • Safety lock function with the front louver take off.


BF-6MB Optional Parts

(Left) :Emitter needle unit(DNU-W85)
(Right):Filter for replacement(10 sheets package)(OBF-F2ZA-1-10)

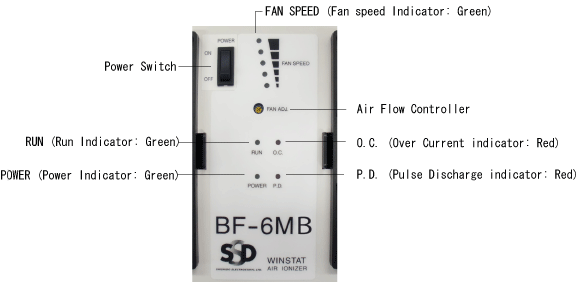

Indicator Panel

BF-6MB Indicator Panel

Static elimination area

BF-6MB Static Elimination Area

* Test by CPM with 150x150mm plate (20pF)
* Above data is actual data not for guaranteed.


Model BF-6MB
Input power supply 24 VDC (AC adapter AC 100 to 240V )
Electric consumption 30 VA (Maximum Air flow)
Output voltage ±7,500 V0-p
Ion balance Within ±5V(at 300 mm distance ; when shipped from the factory)
Decay Performance Below 1.5 second (Distance at 300mm with maximum air speed)
Air volume 1.4 to 3.2 m3 / min ×3 fans
Air speed 0.8 to 1.0 m / sec (distance 300 mm; centered)
Ozone density Under 0.006 ppm at distance 150 mm front
Operating Environment 0 to 40℃ / 15 to 85% RH (no condensation)
Filter Pre-filter level
Signal output MOS FET Relay Non-voltage contact (NC output) HV alarm: OFF
Main unit dimensions 566×146×69.5 mm (W×H×D) not including Fixing Bracket and projecting portion
Weight Approx. 3,100 g (with stand flame)
Noise Level 61 dB(A) (distance 1 m)
Accompanying items Handling Manual, AC adapter, Fixing Bracket(2), knob bolt(2), rubber packing(2), signal cable, cleaning brush, 2P-3P plug adapter
Optional parts Discharge Emitter unit :DNU-W85
Filters :OBF-F2ZA-1-10(package of 10)
