AGZⅢ-PA PIEZONIZER Series

Compact, lightweight gun type. The air valve is integrated into the gun, so a separate controller is unnecessary. The pulsating-action nozzle powerfully blows away dust.

AGZⅢ-PA PIEZONIZER Series
Purpose：
Assembly processesPC board mounting processesInspection processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterShort rangePrintingcoating processesforeign matter

Product features

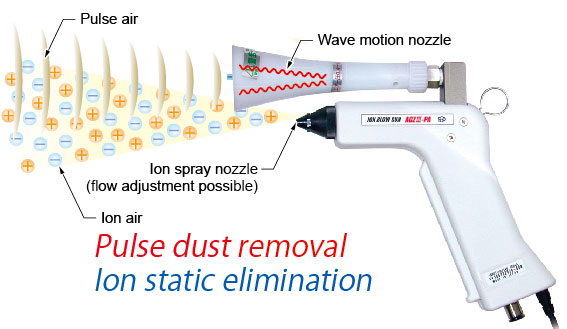

The PIEZONIZER AGZIII-PA is a compact and lightweight air gun type ionizer that eliminates static electricity from charged objects as well as a wave motion nozzle feature to powerfully blow away dust attached by static electricity with pulses of air.

Ion static elimination

Accessories(AC adapter)

AGZⅢ-PA Accessories(AC adapter)

Specification

Model AGZⅢ-PA
Input power supply 24VDC (with AC100~240VAC adapter)
Electric consumption Approx. 100mA
Weight Approx 290g (when only the wave motion nozzle is attached)
Main unit dimensions 210×25×180mm (L×W×H)
Ozone density 0.04ppm (200mm from the nozzle hole)
Fluid used Clean air
Air pressure 0.3~0.6MPa
Operating Environment 0 to 40℃ (with no condensation)
Standard Part Operation manual, AC adapter, connector cable,wave motion nozzle, adjustable flow nozzle
