Product Informations



Uses DC corona discharge for highly effective static elimination. Specifications with low dust emissions are suitable for ion control in clean rooms and on clean benches.

About Icons

Product features

The DC-ESR-C is a bar ionizer that uses the corona discharge method to generate air ions. Air containing positive and negative ions effectively neutralizes the load on a charged object. With its low dust-emission design, this device is suitable for controlling ions in clean rooms and on clean benches. Since a small DC power supply is incorporated in the bar electrode, the device does not require a high-voltage cable. The safety design uses only low-voltage wiring, unlike other devices that require an external high-voltage power supply and high-voltage cables.

Several units can be connected together by means of connectors provided at both ends of a device (up to 3 devices, provided up to 6 devices can be connected together by changing.
Adaptor for connected specification (optional)

1. To two electrodes at the connection : The AD-02 type.
2. To six electrodes at the connection : The AD-06 type.

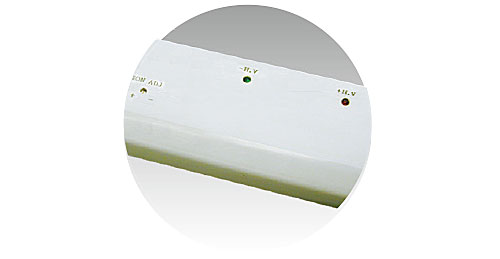

Ion Alarm LED

DC-ESR-C Ion Alarm LED

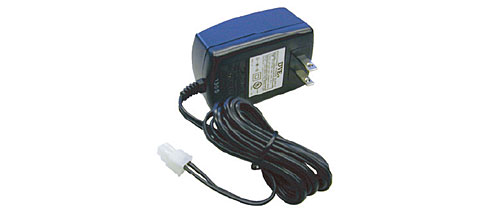

AC adapter

DC-ESR-C AC adapter(option)

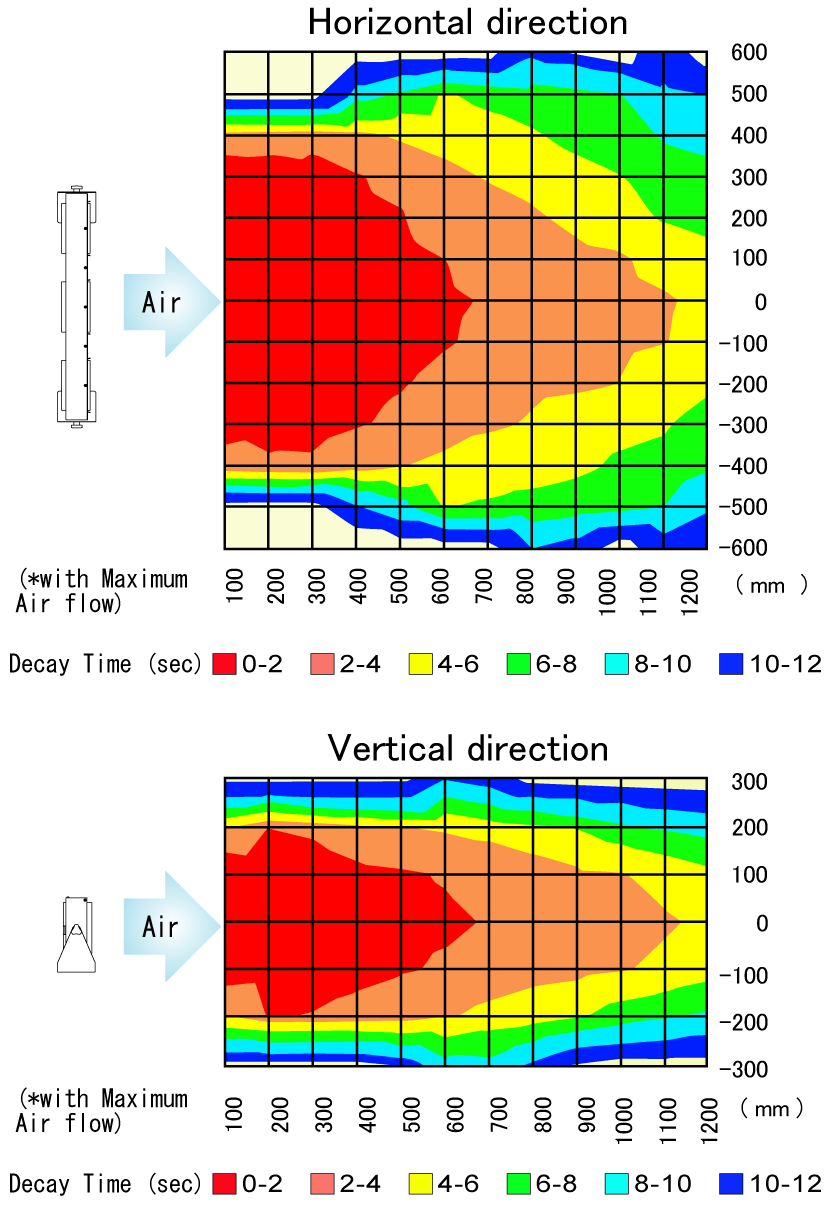

Static elimination area

DC-ESR-C Static elimination area

* When the air downflow velocity is 0.3 m/s
* Test by CPM with 150x150mm plate (20pF)
* Above data is actual data not for guaranteed.

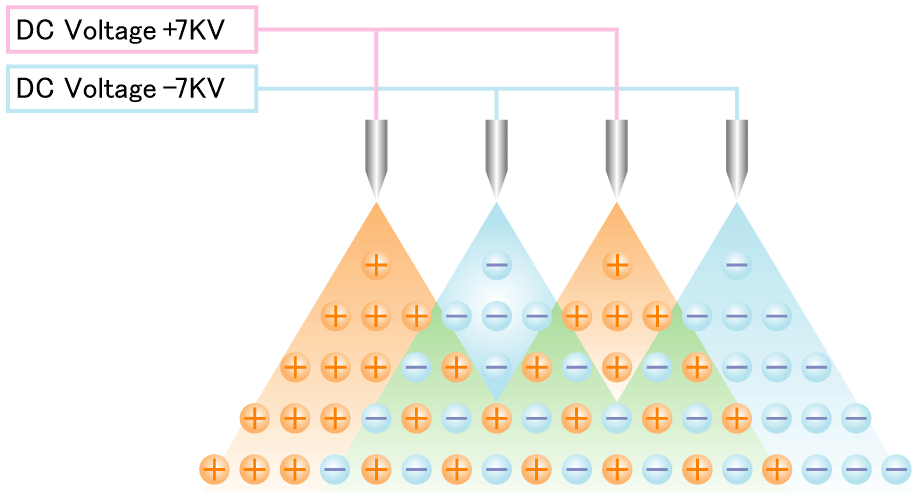

Principle of Static Elimination

DC-ESR-C Principle of Static Elimination


Model DC-ESR-C
Ion generation method Corona discharge method (DC)
Input power supply DC24V ±5% (Optional AC adapter supplied; compatible with 100~240 VAC)
External dimensions 32×50×600, 800, 1000, 1200, 1400, 1600 or 1800mm(D×H×L)
Weight 0.37kg (when L = 600mm)
Ion balance Adjustment function provided
Static decay time 2.1s *1
Amount of ozone generated 0.05ppm or less *2
Material of Emitter Tungsten (can be changed to single-crystal silicon as an option
AOperating temperature range 10~40℃
Option AC adapter(DA-02,DA-06), Power cable(PWC-DC), Electrode connecting cable(EC-DC500,EC-DC1500, EC-DC2500)

*1 Measured using a CPM measurement device (conforms to ESD.STM 3.1-2000) With the ion balance in a steady state, the static decay time is the time taken to decay from +1000V to +100V. Data obtained using the following parameters: Airflow: 0.3m/sec, Distance: 300mm

*2 The ozone density was measured at a distance of 150mm from the main unit's air outlet.
