Trz:CuBe DUST HALER Series

Clean box enabling efficient static elimination and removal of dust attached due to static electricity. Enables high-speed static elimination using an ionizer equipped with HDC-AC.


Product features

  • With Strong Vacuum fan, correct the particle that blown away inside box. (Trz:CuBe)
  • Strong Air blow nozzle at up and down side. Installed three nozzles two for upper sides one for down side.
  • Installed SSD HDC-AC Ionizer and perform fast decay performance.
  • Easy operation by timer controlled air blow.
  • Effective Four kinds of pulsed air blow.
  • Attached additional Filter (1 pc).
  • You can chose non-fan vacuum type (Flt:CuBe) in case you have independent vacuum system.

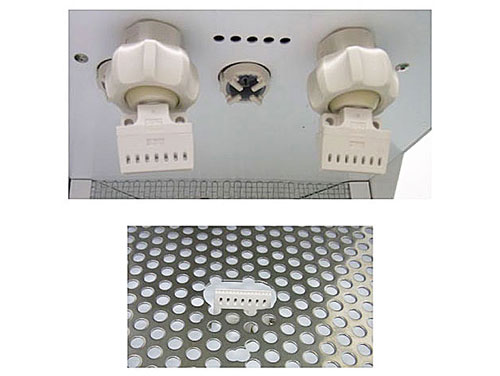

Upper and Down side Air nozzle

Upper and Down side Air nozzle


Model Trz:CuBe Flt:CuBe
Input Voltage AC100V~240V(50/60Hz) ±10%
Electric consumption Maximum 240W Maximum 50W
Ionizer Specifications Discharge Method: HDC-AC
Ion Balance: Below ±30V
Decay time: Below 1 second (0.6MPa air pressured) *1
Supplied Air CDA (Clean and dried air) *2
Available Air pressure 0.2MPa ~ 0.6MPa *3
Size of air fitting Diameter 8mm
Air Blow nozzle Upper side: 2units(Angle adjustable)
Down side: 1unit
Filter Specification Correct 98% of the particle over 10 μm
Air Blow Pulse setting 1Hz, 3Hz, 5Hz, 10Hz, Cont
Air Blow Time setting 3sec, 5sec, 10sec, 15sec, Real
Fan Speed Non-step adjustable -
Air Consumption 270ℓ/min ANR (at 0.3MPa Cont setting)
Vacuum System Fan Dust Corrector
Sound Level Minimum fan speed:51dBA
50% Fan speed: 74dBA
Dimensions 225x360x400mm(WxHxD) 225x360x460mm(WxHxD)
Weight Approx. 9kg Approx. 8.5kg
Available environment 0~40℃ / 15~85%RH (without condensation)
Accessories Manual, Power Cable, Filter, Protector rubber(3pices)
Option Part Filter (5 piecs):Trz-RKF05

*1: Checked by CPM with 150x150mm plate (20pF), Decay time is from±1000V to±100V.

*2: Supplied air must be Clean and Dry, the air contaminated with moisture or oil will makes damage to the ionizer.

*3: Setting level of the air regulator.
